Introduction

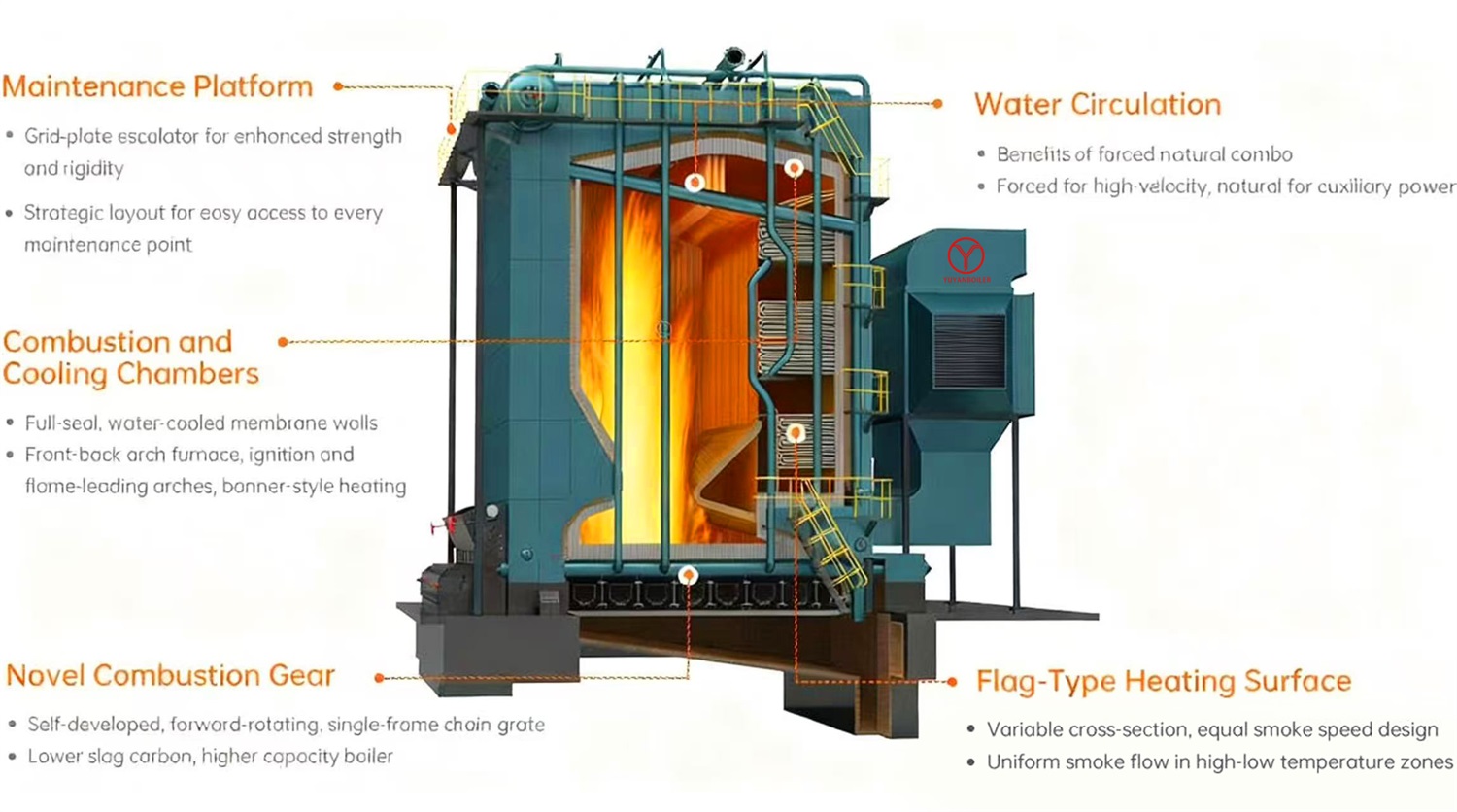

The corner tube boiler is a compact and efficient boiler that utilizes a pipe system as its skeleton. It features a fully enclosed membrane wall structure, flag tube design for the convective heating surface, and is widely used due to its compact structure and rapid temperature rise. It is a bulk-structured boiler.
Advantages
Broad Fuel Compatibility
Compatible with biomass pellets, rice husks, wood chips, corn cobs, sawdust etc.
High Combustion Efficiency
Cross-beam chain grate and membrane water-cooled wall ensure thorough fuel combustion
High Degree of Intelligence
Advanced control, automated fuel, ash, slag operations
Customizable Boiler System
Tailored solutions for feed, slag, and gas treatment, saving time and money
Specification
| Model | Rated thermal power (t/h) | Rated working pressure (MPa) | Rated steam temperature (℃) | Feed water temperature (℃) | Thermal efficiency (%) | Maximum transport dimension (m) |
| DHL35/1.25-SS | 35 | 1.25 | 194 | 104 | 86.8 | 7.70×2.00×2.00 |
| DHL35/1.6-SS | 35 | 1.6 | 204 | 104 | 86.8 | 7.70×2.00×2.00 |
| DHL45/1.25-SS | 45 | 1.25 | 194 | 104 | 86.8 | 8.50×2.00×2.00 |
| DHL45/1.6-SS | 45 | 1.6 | 204 | 104 | 86.8 | 8.50×2.00×2.00 |
| DHL55/1.25-SS | 55 | 1.25 | 194 | 104 | 87.2 | 8.50×2.00×2.00 |
| DHL55/1.6-SS | 55 | 1.6 | 204 | 104 | 87.2 | 8.50×2.00×2.00 |
| DHL65/1.25-SS | 65 | 1.25 | 194 | 104 | 87.2 | 8.40×3.75×4.25 |
| DHL65/1.6-SS | 65 | 1.6 | 204 | 104 | 87.2 | 8.40×3.75×4.25 |
| DHL75/1.25-SS | 75 | 1.25 | 194 | 104 | 87.2 | 11.00×2.00×2.00 |
| DHL75/1.6-SS | 75 | 1.6 | 204 | 104 | 87.2 | 11.00×2.00×2.00 |
| ZZ-35/3.82/450-SS | 35 | 3.82 | 450 | 104 | 86.8 | 7.70×2.00×2.00 |
| ZZ-35/5.29/450-SS | 35 | 5.29 | 450 | 104 | 86.8 | 7.70×2.00×2.00 |
| ZZ-45/3.82/450-SS | 45 | 3.82 | 450 | 104 | 86.8 | 8.50×2.00×2.00 |
| ZZ-45/5.29/450-SS | 45 | 5.29 | 450 | 104 | 86.8 | 8.50×2.00×2.00 |
| ZZ-55/3.82/450-SS | 55 | 3.82 | 450 | 104 | 87.2 | 8.50×2.00×2.00 |
| ZZ-55/5.29/450-SS | 55 | 5.29 | 450 | 104 | 87.2 | 8.50×2.00×2.00 |
| ZZ-65/3.82/450-SS | 65 | 3.82 | 450 | 104 | 87.2 | 8.40×3.75×4.25 |
| ZZ-65/5.29/450-SS | 65 | 5.29 | 450 | 104 | 87.2 | 8.40×3.75×4.25 |
| ZZ-75/3.82/450-SS | 75 | 3.82 | 450 | 104 | 87.2 | 11.00×2.00×2.00 |
| ZZ-75/5.29/485-SS | 75 | 5.29 | 485 | 104 | 87.2 | 11.00×2.00×2.00 |
