Introduction

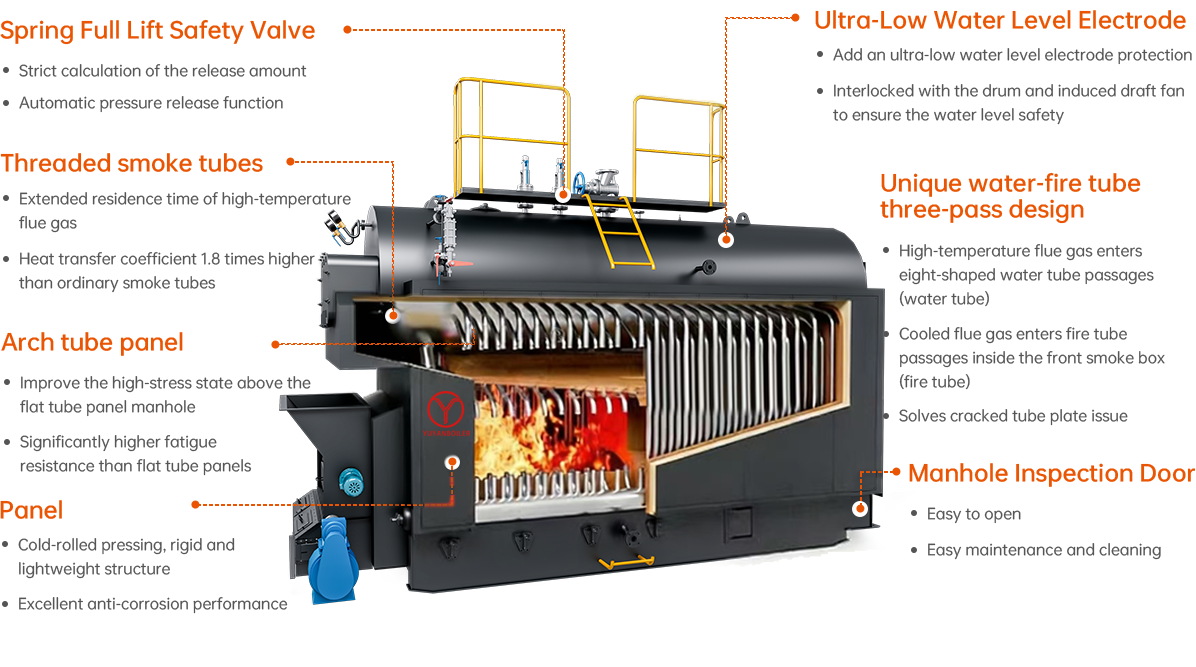

The DZL series quick-installed boiler is a horizontal three-pass water-fire tube chain grate boiler designed for bituminous coal combustion. The boiler features a single drum layout with threaded smoke tubes for convective heating surface, and water-cooled walls on both sides of the drum for radiant heating surface. The combustion equipment adopts a lightweight chain grate, and the boiler is delivered in a complete quick-installed form. The electrical control system enables infinitely variable control of the grate, with alarm and interlock protection for critical parameters.
Advantages
Compatible with bituminous coal, lean coal, and anthracite etc.
Leverage threaded smoke tubes for superior heat transfer
Advanced controls automate fuel supply, ash removal, and slag discharge
Compact structure, quick installation, shorter cycle, less infrastructure investment
Specification
| Model | Rated steam capacity (t/h) | Rated working pressure (MPa) | Rated steam temperature (℃) | Thermal efficiency (%) | Maximum transport dimension (m) |
| DZL2-1.25-AⅡ | 2 | 1.25 | 194 | >80 | 5.30×2.40×3.40 |
| DZL2-1.6-AⅡ | 2 | 1.6 | 204 | >80 | 5.30×2.40×3.40 |
| DZL2-2.5-AⅡ | 2 | 2.5 | 225 | >80 | 5.30×2.40×3.40 |
| DZL4-1.25-AⅡ | 4 | 1.25 | 194 | >80 | 6.50×2.70×3.60 |
| DZL4-1.6-AⅡ | 4 | 1.6 | 204 | >80 | 6.50×2.70×3.60 |
| DZL4-2.5-AⅡ | 4 | 2.5 | 225 | >80 | 6.50×2.70×3.60 |
