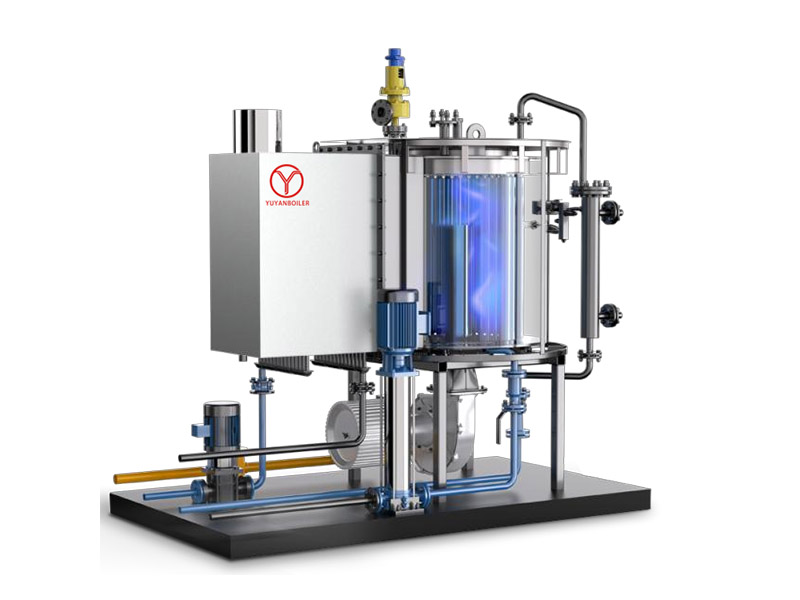

LSS Ultra-Low NOx Condensing Steam Generator

Introduction

Approval free, safe, efficient and energy-saving

1. Exemption from approval: According to Article 1.3 of the Safety Technical Specification for Special Equipment (TSG 11-2020) of the General Administration of Quality Supervision, Inspection and Quarantine of the People’s Republic of China:
   The steam boiler with the designed normal water level water volume for once-through boiler and other boiler without fixed steam-water boundary, the water volume is calculated according to the total capacity of the series of products steam-water heat exchanger. The same boiler is less than 30L of the rated evaporation, so it is not within the scope of special equipment supervision and management. The water volume of this series of products is 300Kg/h, 500Kg/h, 1000Kg/h, and the water volume of condensing steam generator is less than 30L. Made with our company’s core patented technology, the water volume is less than 30L, which avoids the complicated use procedures of traditional boilers.
2. The thermal efficiency is ≥ 98.7%, the exhaust temperature is lower than 60 ℃, and the PVC chimney is used.

Environmental protectionAdopt ultra-low nitrogen burner

1. The crystallization of high-tech, a new era of combustion.
2. NOx≤30mg/m³.
3. The aviation metal fiber combustion is more energy-saving and environmentally friendly than the traditional evaporative boiler process.

Energy saving core technology advantages

1. The passing time is fast, and the steam can be discharged within 2 minutes, which greatly saves the heating time.
2. The static surface combustion is adopted to automatically adjust the boiler power according to the steam demand, and the stepless speed change replaces the small and small fire regulation of the traditional boiler, saving 10% – 20% energy than the traditional boiler.
3. Adopt the unique full return design, which is safer.
4. It can produce super-heated steam, and can produce 180 ℃ – 230 ℃ high-temperature steam under low pressure environment, which makes heating more efficient and easier. It is equipped with energy saver and condenser.

Security

1. 1Adopt EBM, AMETEK, FASCO brushless PWM fans, a variable frequency fan that will not produce sparks.
2. HONEYWELL air-fuel ratio valve group (Germany) adaptive air-fuel ratio valve group enables air and gas to perform proportional combustion and combustion is more stable.
3. Multiple gas backflow protection devices are combined to prevent flue gas backflow to the boiler room.

Steam constant pressure output technology

The combustion power stepless speed change function is adopted to automatically match the steam pressure to avoid repeated start-stop and output pressure fluctuation.

Remote control and intelligent three-tech control technology

• Intelligent management adopts KUNLIN 7-inch LCD touch screen with resolution of 800 * 480, and full Chinese graphic man-machine operation interface.
• Real-time monitoring data analysis and maintenance reminder, mobile real-time monitoring.
  1.Real-time monitoring of boiler and system operation data, energy efficiency analysis and energy management, so as to provide better solutions for energy-saving transformation;
  2.The overall data monitoring of the boiler realizes real-time liquid crystal fault alarm and video monitoring, and sends alarm information to APP and mobile phone in case of safety, overpressure and other conditions.
  3.Maintenance reminder.
• Maintenance reminder equipment and accessories operation cycle, maintenance, analysis and reminder.
• Storage and analysis of historical data of multi-dimensional storage boiler.

Ultra-small floor area

1. The floor area is only 1/3 of that of traditional boiler.
2. Ultra-light weight, 1/3 of the weight of traditional boiler.

Installation humanized design

1. The unique combustion engine and the connecting part of the body can be transported and installed separately.
2. Modular combination can reach the scale of any single boiler through ‘parallel combination’ in quantity.

Six Core Advantages

Specification
