Introduction

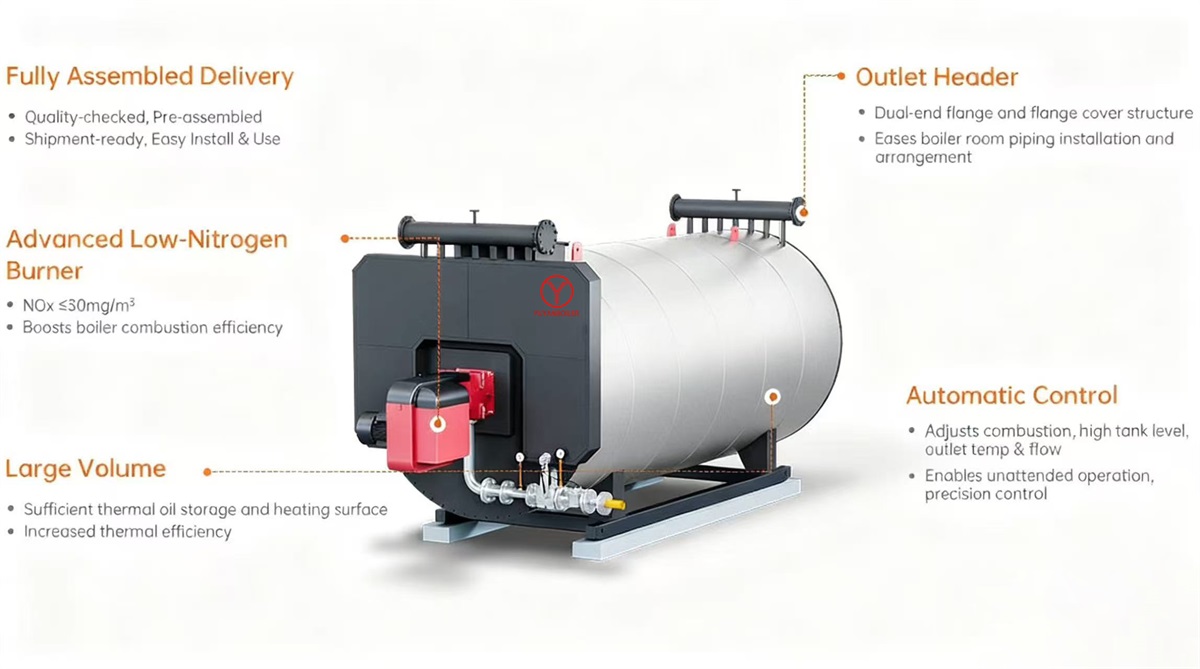

The YQW series oil/gas thermal oil boiler adopts a two or three passes round coil structure. The end of the coil tube is tapered, effectively protecting the end furnace wall of the boiler. It is equipped with advanced combustion equipment, and the operation of the boiler is fully automated. The boiler is shipped as a whole and can be put into operation just by connecting the gas (oil) and electricity after it is in place on the site.
Advantages
Advanced Control System
Precision control of oil temperature and pressure for secure
Fully Automatic Safe Operation
Automatic control allows for easy maintenance and unattended operation
Simple Operation
Packaged delivery with shorter installation cycle
Eco-Efficient
Low-nitrogen burner emissions ≤30mg/Nm³
Specification
| Model | Rated thermal power (KW) | Rated thermal power (×104kcal/h) | Rated outlet oil temperature (≤℃) | Rated working pressure (MPa) | Thermal efficiency (%) | Maximum transport weight (t) | Maximum transport dimensions (m) |
| YQ(Y)W-1400Q(Y) | 1400 | 120 | 320 | 0.8 | >92 | 8 | 4.55×2.05×2.60 |
| YQ(Y)W-1800Q(Y) | 1800 | 160 | 320 | 0.8 | >92 | 9.5 | 4.95×2.15×2.70 |
| YQ(Y)W-2100Q(Y) | 2100 | 180 | 320 | 0.8 | >92 | 11 | 4.95×2.40×3.00 |
| YQ(Y)W-2400Q(Y) | 2400 | 200 | 320 | 0.8 | >92 | 12 | 5.40×2.40×3.00 |
| YQ(Y)W-2800Q(Y) | 2800 | 240 | 320 | 0.8 | >92 | 14.5 | 6.10×2.60×3.10 |
| YQ(Y)W-3500Q(Y) | 3500 | 300 | 320 | 0.8 | >92 | 16 | 6.90×2.60×3.10 |
| YQ(Y)W-4200Q(Y) | 4200 | 360 | 320 | 0.8 | >92 | 18 | 6.90×2.75×3.35 |
| YQ(Y)W-4600Q(Y) | 4600 | 400 | 320 | 0.8 | >92 | 20 | 6.90×2.92×3.55 |
| YQ(Y)W-6000Q(Y) | 6000 | 500 | 320 | 0.8 | >92 | 26 | 7.20×3.25×3.98 |
| YQ(Y)W-7000Q(Y) | 7000 | 600 | 320 | 0.8 | >92 | 33 | 7.80×3.40×4.10 |
| YQ(Y)W-8200Q(Y) | 8200 | 700 | 320 | 0.8 | >92 | 37 | 8.00×3.55×4.30 |
| YQ(Y)W-9400Q(Y) | 9400 | 800 | 320 | 0.8 | >92 | 44 | 9.15×3.70×4.60 |
| YQ(Y)W-10500Q(Y) | 10500 | 900 | 320 | 0.8 | >92 | 47 | 9.85×3.80×4.70 |
| YQ(Y)W-12000Q(Y) | 12000 | 1000 | 320 | 0.8 | >92 | 48 | 10.19×3.80×4.70 |
| YQ(Y)W-14000Q(Y) | 14000 | 1200 | 320 | 0.8 | >92 | 61 | 10.75×4.00×4.90 |
